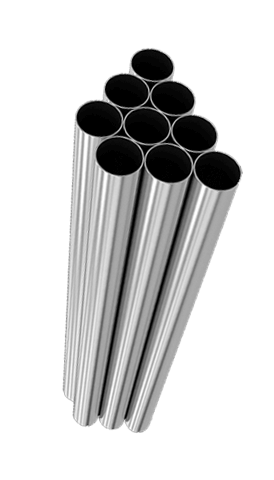

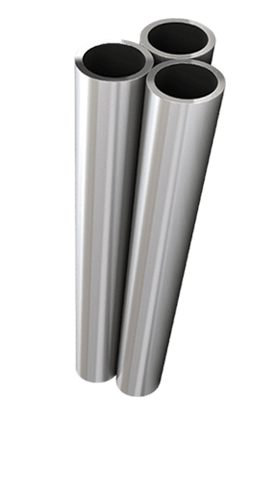

Sanicro 28 (Alloy 28, UNS N08028) Seamless Pipes to ASTM B668
Dinesh Tube India supplies and exports Sanicro 28 pipes from Mumbai for phosphoric acid, sulphuric acid, chloride cooling-water and sour-gas piping. The alloy is known generically as Alloy 28 (UNS N08028, Werkstoff 1.4563). We supply seamless pipe to ASTM B668 / ASME SB668 and EN 10216-5, by NPS and schedule, solution annealed, with EN 10204 3.1 mill test certificates.
Alloy 28 is a high-alloy austenitic stainless steel with about 27% chromium, 31% nickel, 3.5% molybdenum and 1% copper. The high nickel and copper give it excellent resistance in sulphuric and phosphoric acid, while the chromium and molybdenum resist pitting and crevice corrosion in chloride waters (PRE about 39). The high nickel content also makes it highly resistant to chloride stress corrosion cracking.
Sanicro® is a registered trademark of Alleima AB. Dinesh Tube India is an independent supplier; pipes are supplied to UNS N08028 from approved mills, with the producing mill shown on the certificate.


Sanicro 28 Equivalent Grades
There is no exact AISI or JIS equivalent. The closest common alternatives are 904L (lower nickel and chromium) and Alloy 825 (higher nickel, lower chromium); see the comparison below.
Sanicro 28 Pipe Chemical Composition (ASTM B668, %)
Sanicro 28 Pipe Mechanical Properties (ASTM B668, Minimum)
Values for the solution-annealed condition. Check the current ASTM B668 edition and the mill certificate for governing values. Cold-worked high-strength OCTG pipe is a separate product with much higher yield strength.
Sanicro 28 vs 904L vs Alloy 825 vs 254 SMO
Sanicro 28 is usually chosen over 904L where the acid also carries chlorides and fluorides, as in wet-process phosphoric acid. For seawater alone, a 6Mo grade such as 254 SMO pipe is often the better choice. For sulphuric acid without chlorides, Alloy 20 pipe is a common lower-cost alternative.
Sanicro 28 Pipe Schedule and Weight Table
Weight (kg/m) = (OD − wall) × wall × 0.02513, using density 8.0 g/cm³. Wall thicknesses per ASME B36.19.
Where Sanicro 28 Pipe Is Used
Sanicro 28 Piping Package
Sanicro 28 Fittings
Butt-weld elbows, tees, reducers and caps in UNS N08028.
Sanicro 28 Flanges
Weld neck, slip-on and blind flanges in UNS N08028.
Sanicro 28 Tubes
Seamless heat-exchanger and evaporator tubes by OD and wall.
Need Sanicro 28 / Alloy 28 pipe? Send the NPS, schedule, length, quantity and process media to kamlesh@dineshtube-india.com or call +91 83559 10913. You can also send an enquiry.
Welding and Testing
Sanicro 28 Pipe Applications
Sanicro 28 Pipes: FAQs
What is Sanicro 28?
Sanicro 28 is Alleima's trade name for Alloy 28 (UNS N08028, Werkstoff 1.4563), a high-alloy austenitic stainless steel with about 27% chromium, 31% nickel, 3.5% molybdenum and 1% copper.
What is the equivalent of Sanicro 28 pipe?
The equivalents are Alloy 28, UNS N08028, Werkstoff 1.4563 and EN X1NiCrMoCu31-27-4. Seamless pipe is made to ASTM B668 / ASME SB668 and EN 10216-5. There is no exact AISI equivalent; 904L and Alloy 825 are the closest alternatives.
What is the chemical composition of Sanicro 28?
To ASTM B668: chromium 26.0–28.0%, nickel 30.0–34.0%, molybdenum 3.0–4.0%, copper 0.6–1.4%, carbon 0.030% max, manganese 2.50% max, silicon 1.00% max, balance iron.
Is Sanicro 28 pipe available in welded form?
ASTM B668 covers seamless pipe and tube only, so Sanicro 28 / Alloy 28 pipe is normally supplied seamless. Larger welded sizes can sometimes be fabricated from N08028 plate; ask us for your size.
What sizes are available in Sanicro 28 pipe?
Seamless Sanicro 28 pipe is typically available from about ½" to 6" NPS in Sch 10S, 40S and 80S, in random or cut lengths, with wall thicknesses to ASME B36.19.
How much does Sanicro 28 pipe weigh?
Weight in kg/m = (OD − wall) × wall × 0.02513, with OD and wall in mm. For example, 2" Sch 40S (60.33 × 3.91 mm) weighs about 5.54 kg/m.
What is the price of Sanicro 28 pipe?
The price depends on NPS, schedule, length, quantity, testing and certification, and on nickel and molybdenum prices at the time of order. Send your requirement to kamlesh@dineshtube-india.com or call +91 83559 10913 for a current quote.
Export Destinations for Sanicro 28 Pipes
We supply Sanicro 28 (Alloy 28) seamless pipes across India to fertiliser, phosphoric acid, sulphuric acid and chemical projects in Gujarat, Maharashtra, Tamil Nadu, Andhra Pradesh and Odisha, and export to the Middle East (Saudi Arabia, UAE, Qatar, Oman, Kuwait, Jordan), Africa (Morocco, Tunisia, Egypt, South Africa), Asia (Japan, South Korea, Singapore, Malaysia, Indonesia, Vietnam) and Europe on request.
